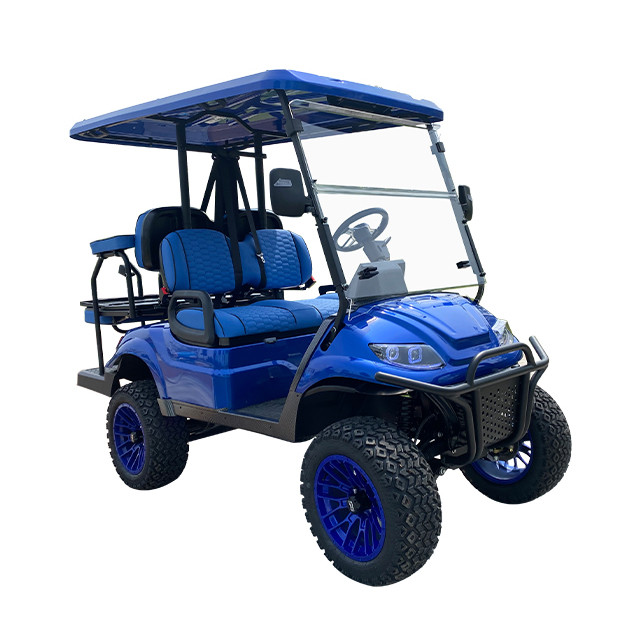

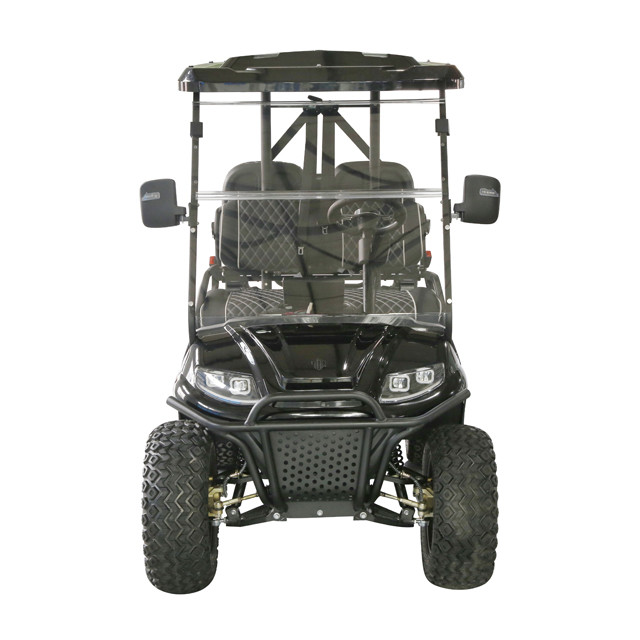

    72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart

    Ask Lasest Price
    Brand Name : TOP GOLF
    Model Number : EV 2+2
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, T/T, Western Union, Western Union
    Supply Ability : 3000 Unit/Units per Month
    Delivery Time : 15-20 Work days
    • Product Details
    • Company Profile

    72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart

    72 V 4 passenger ESP golf cart 4 wheel electric drive electric golf cart

    Description


    Model No.: EV 2+2G

    Charger:computer intelligent charger

    Motor:5KW/7.5KW

    Battery:Chaowei battery or lithium battery

    Transaxle:12.31:1

    Overall Size:3450*1200*1880mm

    Ground clearance:170mm

    Tread distance:front900/rear1000mm

    Net weight:525kg

    Loading:4 people

    Braking dist:<6m

    Turning radius:2.9m

    Climbing ability:25%

    Maximum mileage:100km

    Optional Spare Parts

    Speaker, Underbody lighting,side step,front clay basket,seats cover, security light,cargo box, rear canopy, ice box, caddie plate, body cover,
    rain cover, sun curtains, sand rake, sand box, speed meter

    Performance


    Body and Frame
    Frame (Chassis)
    Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
    Body and Roof
    PP plastic front body and rear body; FRP roof
    Windshield
    Organic plastic windshield, one-piece
    Roof supports
    Carbon Steel, powder coated
    Backrest and Seat
    Reborn Sponge, artificial leather + plastic armrest
    Floor
    Galvanized Steel plate and anti-slip rubber floor mat
    Dashboard
    Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
    Side trim
    Aluminum alloy
    Sider mirror
    2pcs, foldable
    Electric System
    Lighting system and horn
    All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
    Backup Buzzer
    12V
    Charger
    Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
    Steering, Brake, Transmission and Suspension
    Steering System
    Single-stage rack and pinion steering system, automatic rocker compensating function
    Brake system
    Rear wheel mechanical brake, foot activated parking brake
    Accelerator
    Stepless speed change
    Driving mode
    Rear axle two stage deceleration, motor direct driving
    Rear axle
    Integrated, Gear ratio12.49:1
    Suspension system
    Front and rear plate leaf spring + cylinder hydraulic shock absorber
    72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart72 V 4 Passenger ESP 4 Wheel Electric Drive Motorized Street Legal Golf Cart

    Packaging & Shipping

    1. Delivery date: 15 days for mass producing

    2. 1*20'GP fit 4 units.1*40'HQ fit 16 units.

    3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.


    Our Service

    We provide 12 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
