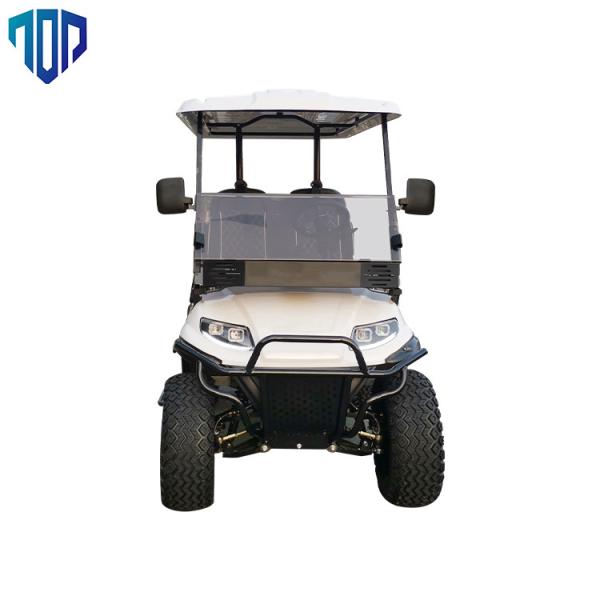

Maximum Speed 25Km/h 48V / 5kw 4 Seater Lifted Golf Cart With Rear Seats

48V/5kw 4 Seater Lifted Golf Cart With Rear Seats

Description

Model No.:EV 2+2

Charger:computer intelligent charger

Motor:48V;5KW

Battery:Chaowei Battery 48V*6pcs

Overall Size:2930*1370*2060mm

Net weight:610kg

Braking dist:<6m

Turning radius:3.45m

Climbing ability:Safe climbing 20%

Maximum mileage:90km(flat road)

Performance

Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; FRP roof
Windshield	Organic plastic windshield, one-piece
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Aluminum alloy
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Rear wheel mechanical brake, foot activated parking brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Suspension system	Front and rear plate leaf spring + cylinder hydraulic shock absorber

Specifications

BODY PANELS

ABS 747 Injection molded P.P. Panels infused with automotive grade U.V. resistant gloss color finish.

BATTERIES
Maintenance free batteries, easy for maintenance.

MOTOR
Premium quality 48V 4kw high efficiency shunt wound, brushless AC motor

CHARGER
DC 48v 16A fully automatic high frequency intelligent charger.

STEERING
Self-Adjusting, permanently lubricated rack& pinion steering with sealed tie-rod ends.

Optional Spare Parts

foldable windshield, seat belts, seats cover, security light, swiss cargo box, rear canopy, ice box, caddie plate, body cover,
rain cover, sun curtains, sand rake, sand box, speed meter

Packaging & Shipping

1. Delivery date: 15 days for mass producing

2. 1*20'GP fit 4 units.1*40'HQ fit 16 units.

3. Asia: 3-7 days to arrive; Other : 15-30 days to arrive.

Our Service

We provide 12 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
